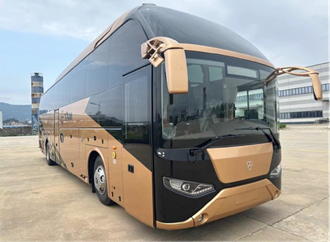

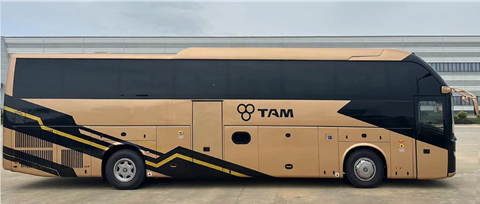

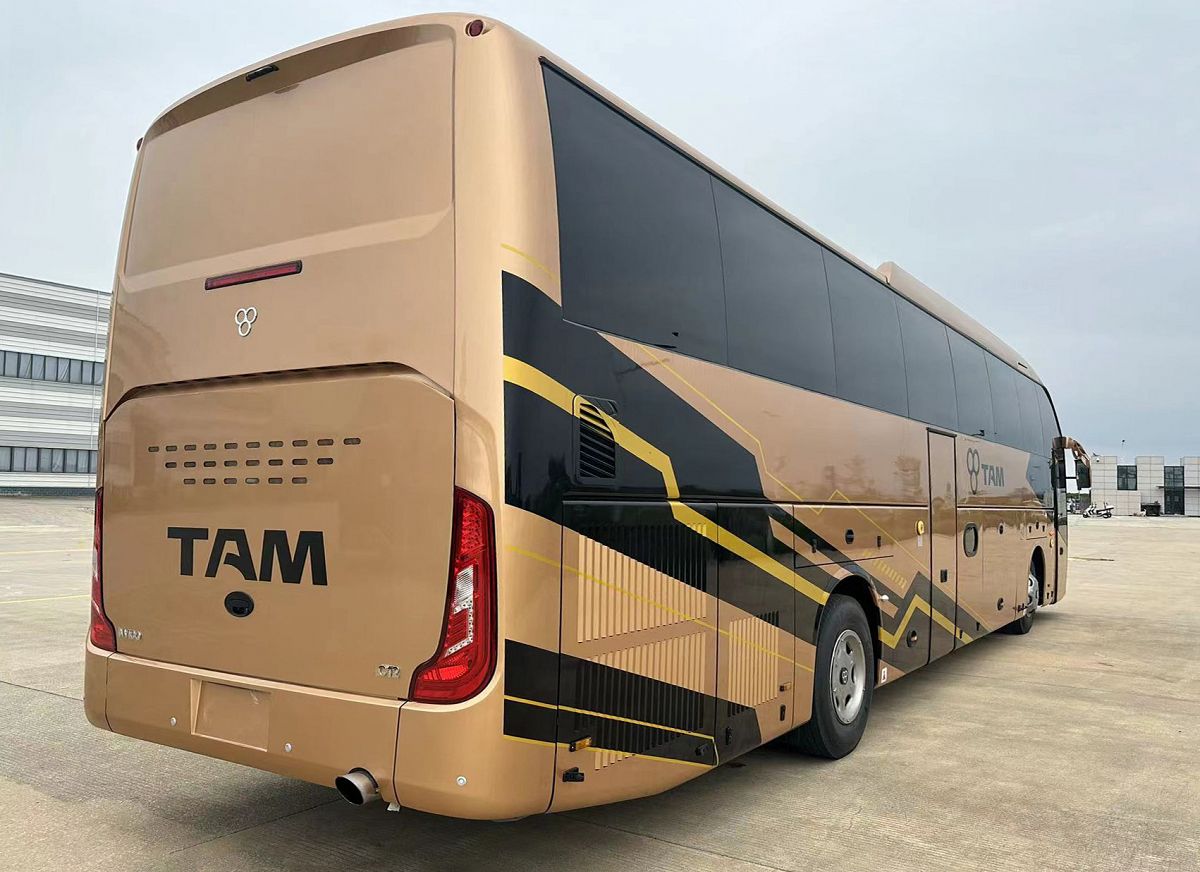

TAM VIVE C12
| General Specifications | |
| Length (mm) | 12450 |
| Width (mm) | 2550 |
| Height (mm) | 3790 |
| Wheelbase (mm) | 6450 |
| Interior height (mm) | 1900 |
| Front track (mm) | 2080 |
| Rear track (mm) | 1860 |
| Turning circle (mm) | 25,000 |
| Net weight (kg) | 14250 |
| Maximum GVW (kg) | 19000 |
| Max. vehicle speed(km/h) | 120 |
| Number of steps | 3 |
| Approach angle (°) | 7 |
| Departure angle (°) | 7 |
| Climbing ability | ≥20!” |
| Fuel type | Diesel |
| Passengers | |

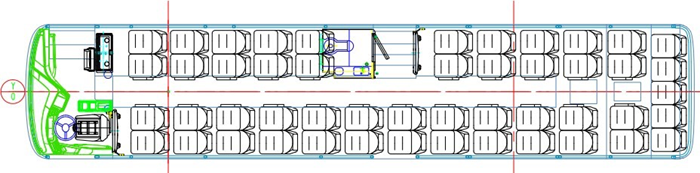

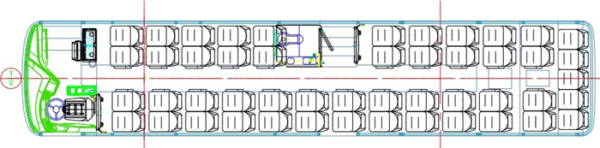

| Seated passengers | 49 Passenger seats +1 Driver seat + Fold-able seat |
| Chassis Specifications | |
| Engine brand | Yuchai Motors |
| Engine type | In-line 6-cylinders, 4-stroke, liquid cooling d, turbo-charged, direct injection, diesel engine |
| Engine model | YC6MK380-50 |
| Max power | 275kW(380HP)/2100rpm |
| Rated torque | 1550Nm/1100-1500(rpm) |
| Displacement | 10.3L |
| Emission standard | Euro 5 |
| Clutch | SACHS Brand |
| Transmission | FAST Manual |
| Retarder | FAST Hydraulic retarder integrated |
| Front axle | 6.5T, Disc brake |
| Rear axle | 13T, Drum brake |
| Suspension | Air suspension, Front 2/ rear 4, Firestone brand |
| Braking system | Dual-circuit pneumatic brake, front disc and rear drum brake#” With Valves and ABS/EBS of Wabco#Brake gap automatic adjuster |
| Steering system | Bosch 8098, Steering system of hydraulic power |
| Tires | 295/80R22.5 tubeless |
| Rims | Chrome rim |
| Fuel tank | 800 L |
| Body Specifications | |
| Manufacturing process of chassis and body | Monocoque & Electrophoresis |
| Painting | Standard painting (White) |
| Front windshield | Laminated glass |
| Rear windshield | Hardened glass |
| Side window | Fully enclosed toughened double layer tinted glass, only the driver side can sliding |
| Roof hatch and ventilator | 2 sets of roof hatch with electric ventilator |
| Passenger door | Passenger door of Front and middle pneumatic outward swing aluminum, with remoter and emergency valve |
| Inner luggage rack | Inner luggage rack on both sides |
| Luggage compartment | Luggage compartment capacity$10.2m3 |
| Luggage compartment door | Aluminum alloy, manual lift style; Four small luggage cabin doors are manual flap-up |
| Rear cabin door | Aluminum alloy |
| Floor | Bamboo floor |
| Floor cover | Anti-fire, anti-slip, wooden grain wear-resistant floor leather |

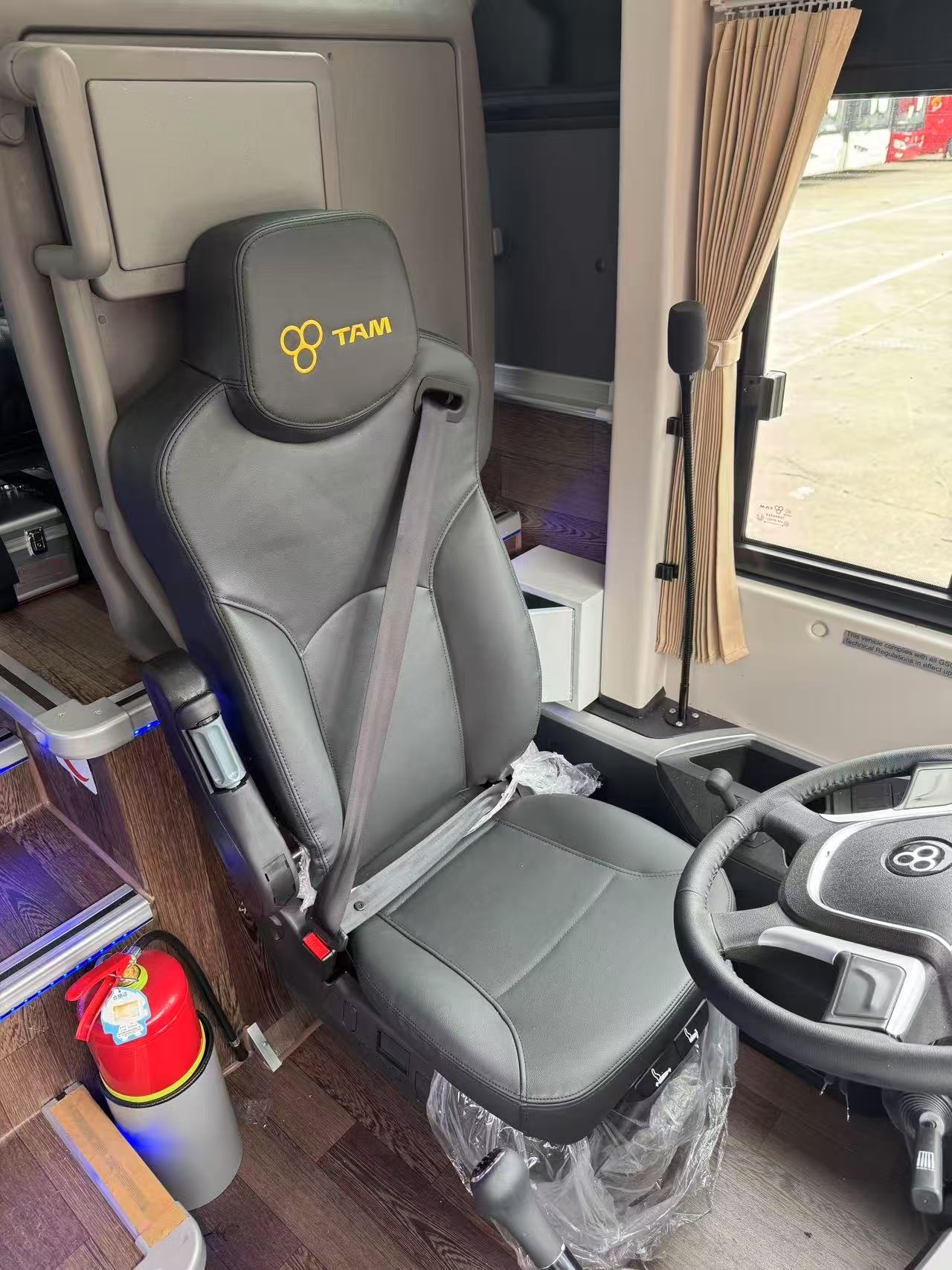

| Driver’s seat | Air shock absorption driver seat with 3-point belt, driver seat with not fastened alarm |
| Fold-able seat | One-fold-able seat with 3-point belt |

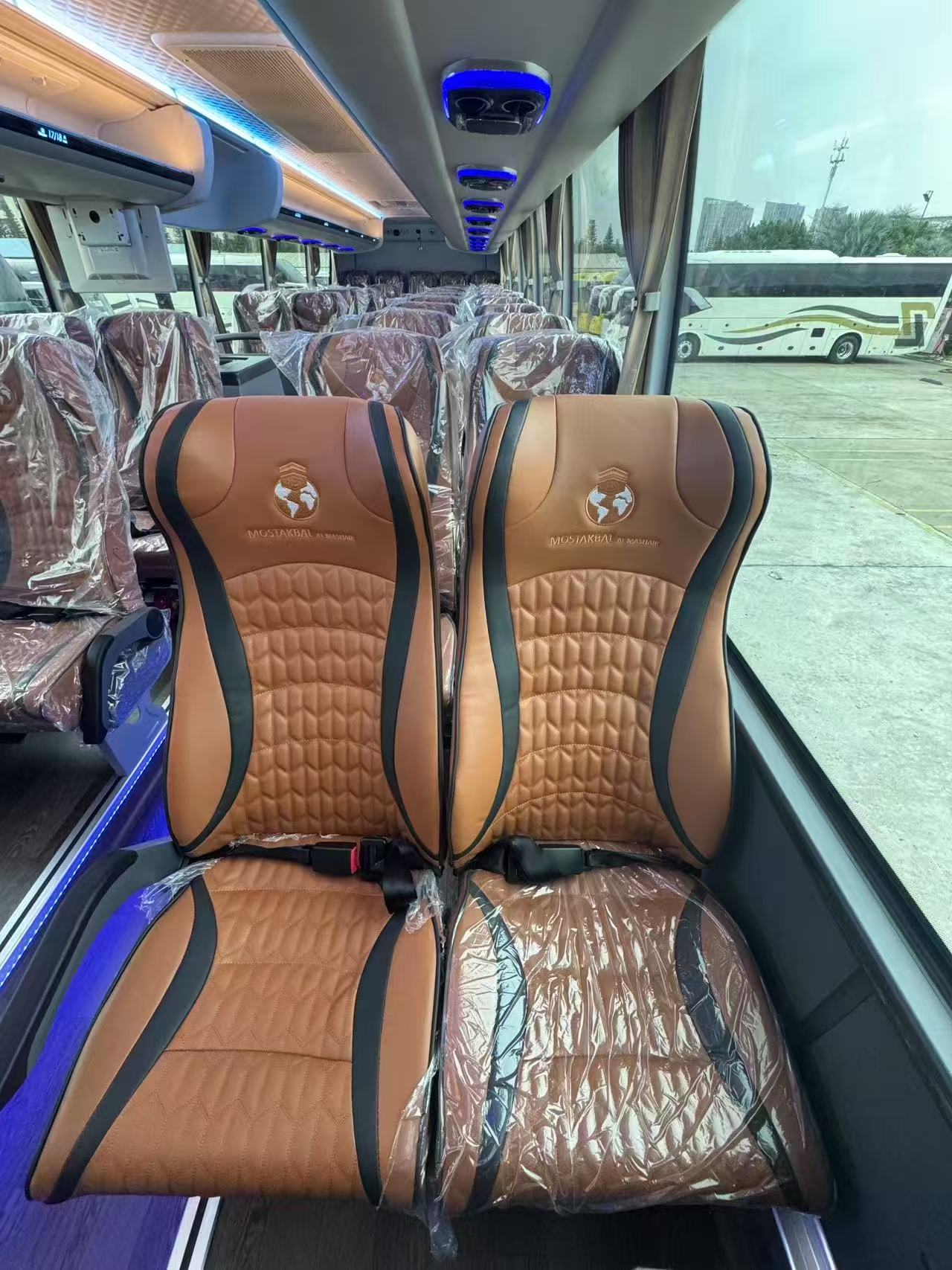

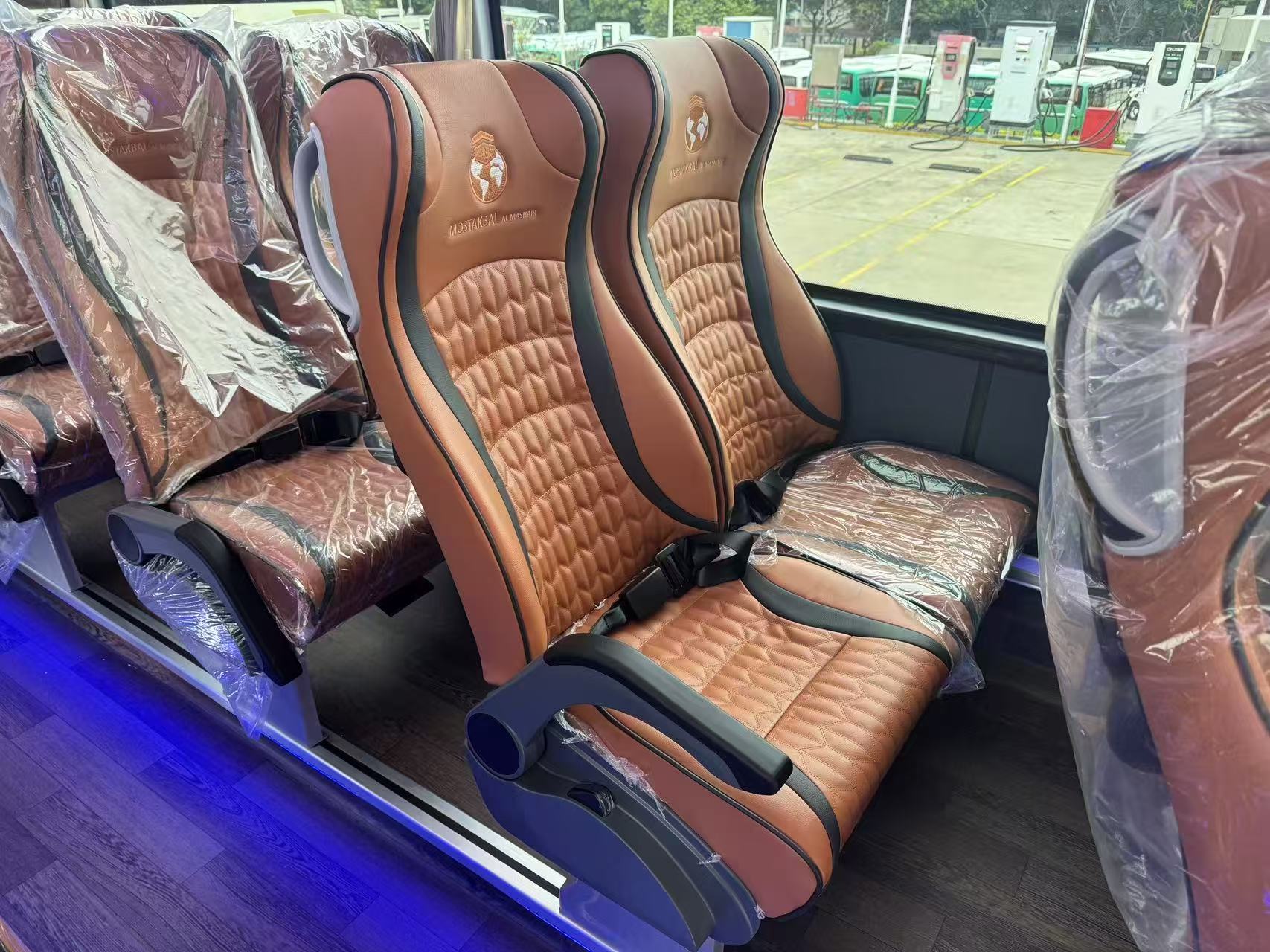

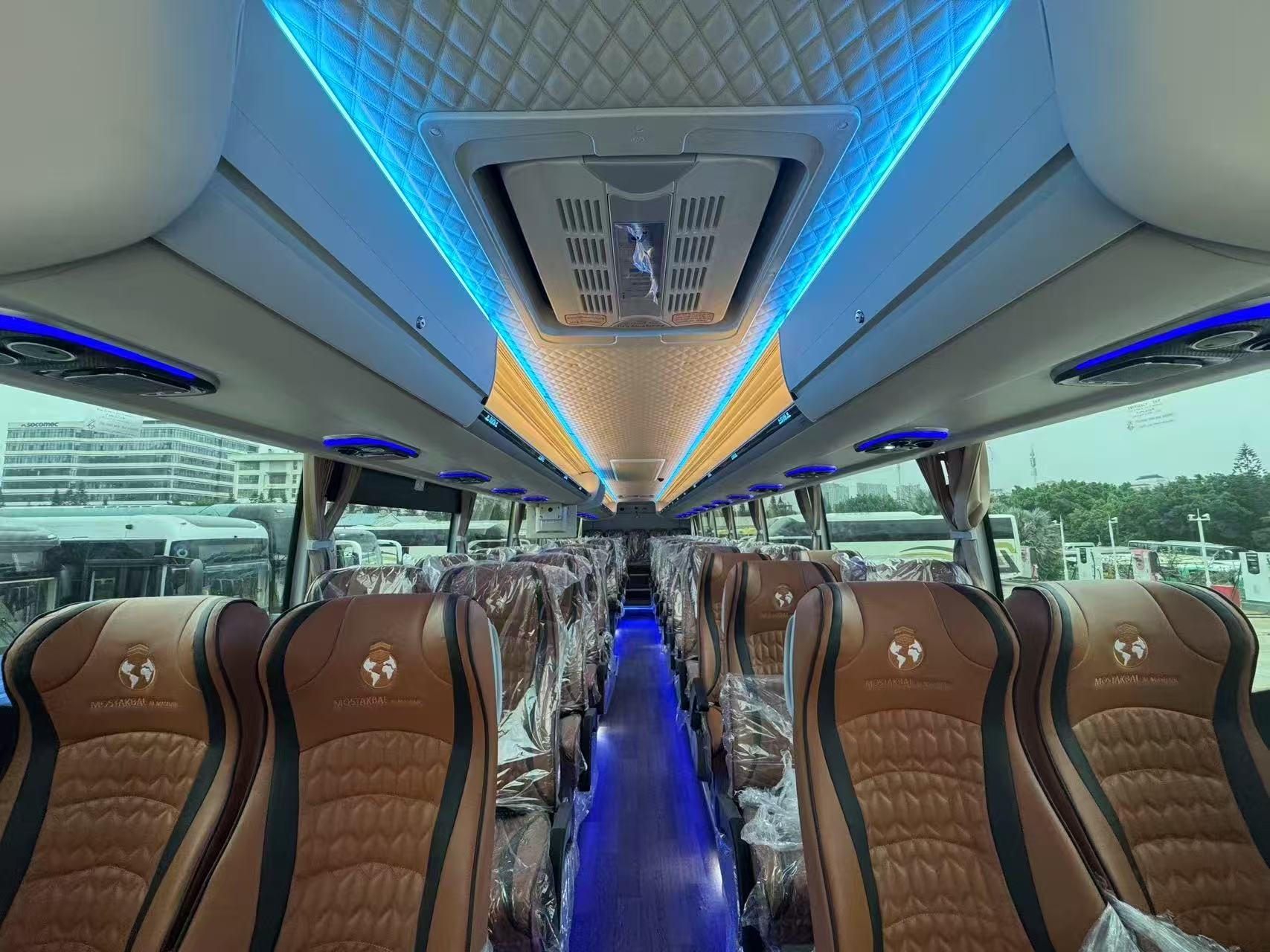

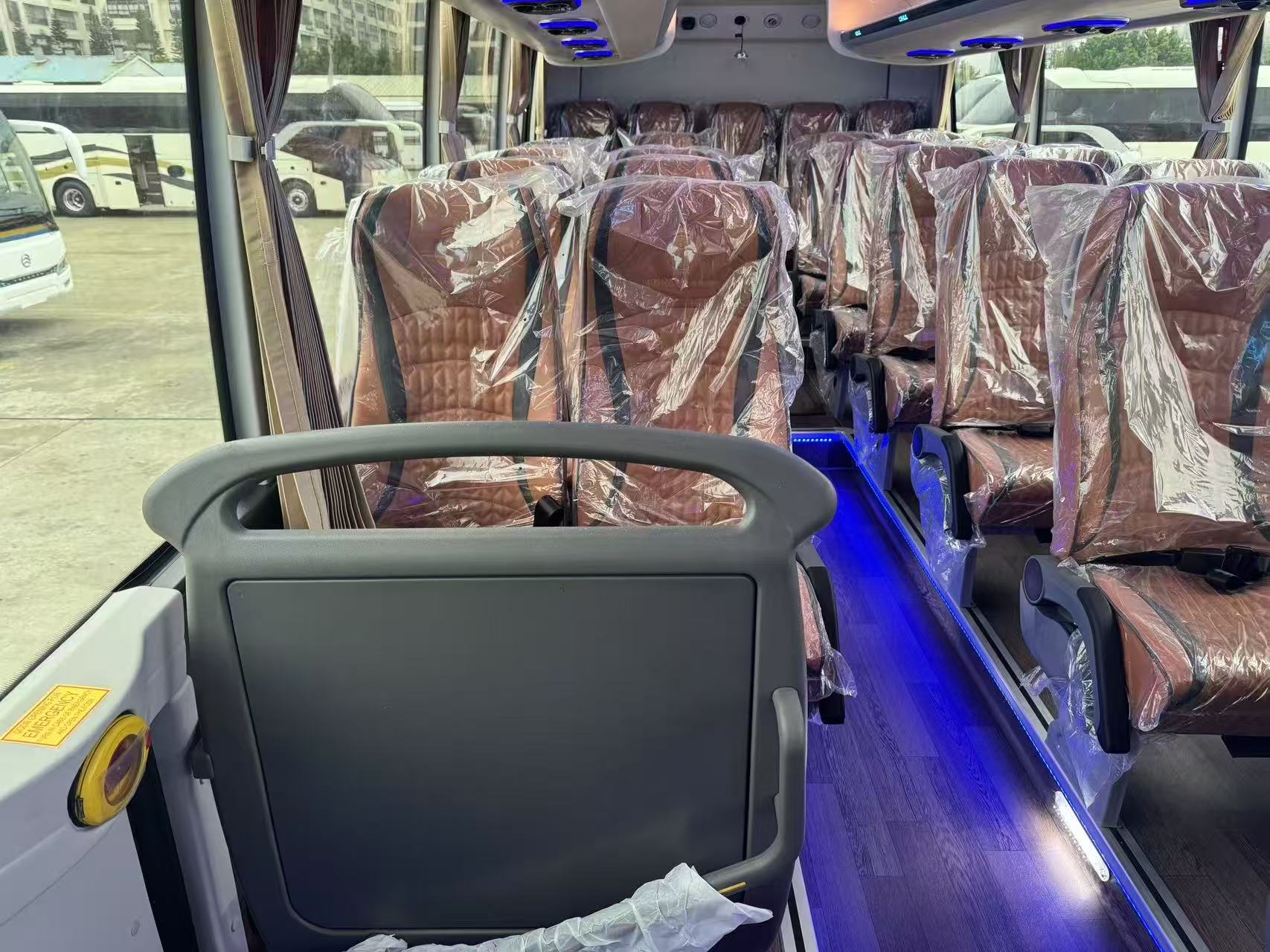

| Passenger seat | 49 seats, fabric or artificial leather surface. Adjustable backrest, transversely moveable, foot rest, 2-point safe belt, food-hold plate equipped |

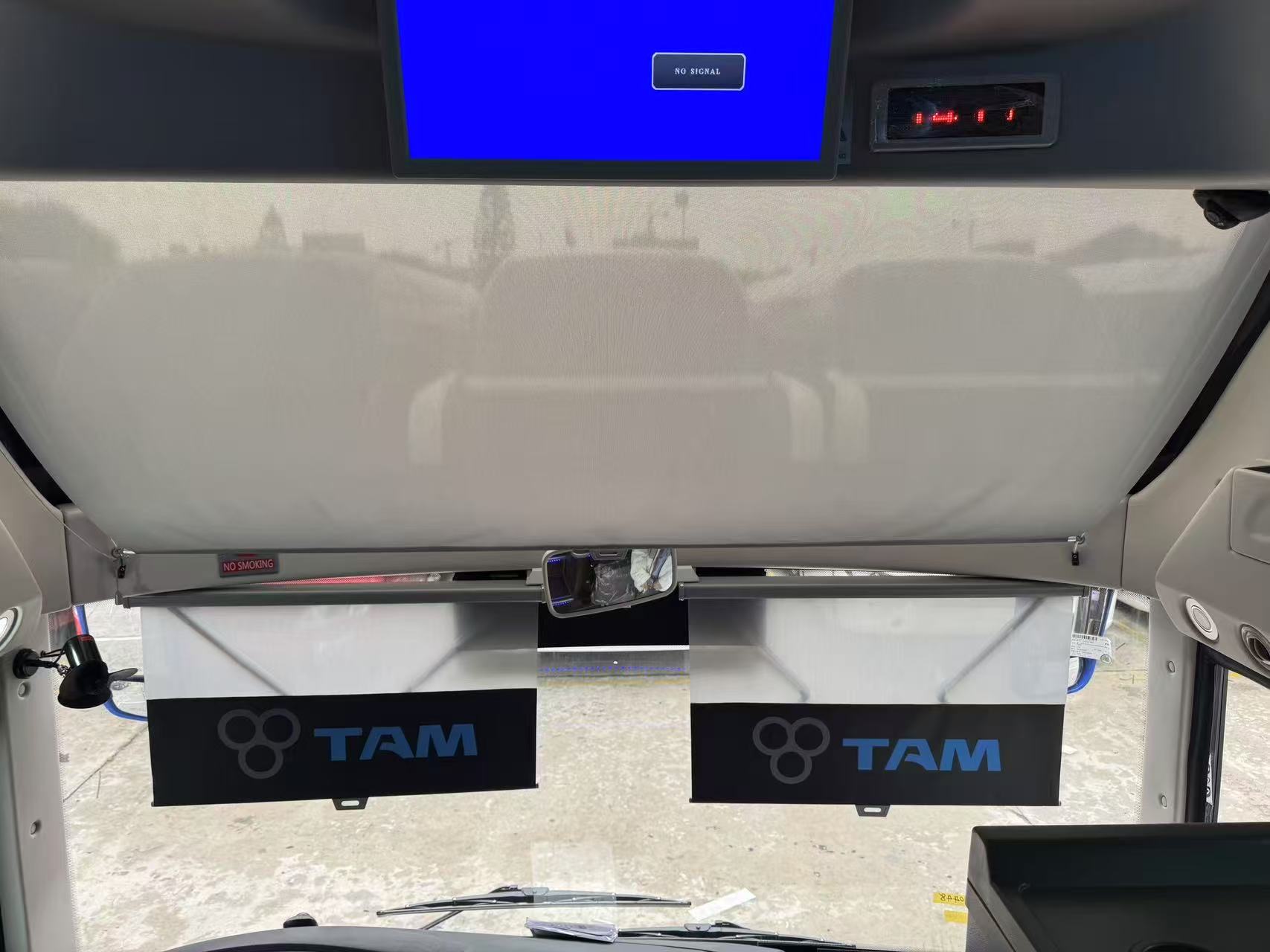

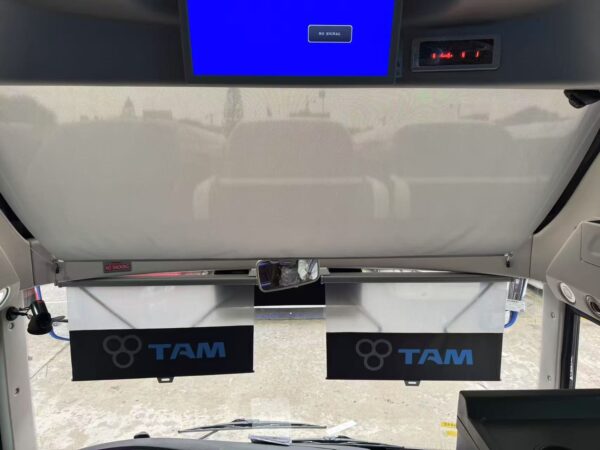

| Sun-shield for driver | Front sun visor and left side curtain |
| Rearview mirror | Electric control |
| Curtain | Equipped |
| Safety hammer | 6 units |
| Toilet | Luxury Toilet Equipped with vents, extra water tank for Muslim cleaning quipped |
| Electronic & Safety | |
| Alternator | Prestolite alternator,140A*2 |
| LED destination board | Equipped with LED electronic display board on the front and right sides(required by NAQABA) |
| High position brake lamp | Equipped |
| Audio-vision system | HD player+19inch LCD *2 |
| Microphone system | One fixed and one flexible and 8 speakers in the cabin |
| Reversing monitor | 7-inch LCD with one reverse camera |
| Monitor camera | 5 internal cameras (Required by NAQABA) |
| A/C | 34000kcal/h Germany Brand compressor |
| 24V/Battery | 12V*200Ah*2 |
| Heater and defroster | Equipped |
| Fire extinguisher system | Engine compartment automatic fire extinguisher + 1 battery compartment automatic fire extinguisher |
| WIFI device | Equipped (Required by NAQABA) By customer requested style |
| GPS navigation | Tracking device connector equipped; GPS navigation equipped |
| USB charger | Equipped |
| Wiper | Double arm |
| Reversing video system | Equipped |
| Reverse Radar | Equipped |
| Reversing buzzer | Equipped |
| Lighting system | Interior LED strip light, battery cabin light, headlight, tail light, side light. |
| CCTV system | Cameras for reverse, driver, FT/MD door, inside |
| Panel | CAN III |
| Horn | Electric horn |
| Front and rear towing hook | Equipped (Required by NAQABA) |
| Medical kit& passport box | Equipped (Required by NAQABA) |
| Emergency tools | Emergency tools and triangle (Required by NAQABA) |
| ABS function | Yes |
| Number of safety hammers | 6 |
| Automatic fire extinguishing system of engine cabin Yes | Yes |
| Warranties | |
| General Warranty | 3 years 200000 Km which come first |
