COACH BUS FULL SPECIFICATIONS
| Over all specification | Overall length(mm) | 12500 | Engine | Engine model | YC 6MK 375 50 |
| Overall width(mm) | 2550 | Manufacture | YUCHAI | ||
| Overall height(mm) | 3860 | Engine position | Rear Engine | ||
| Wheel base (mm) | / | Engine Type | Diesel | ||
| F/R overhang(mm) | / | Max power (hp)/rpm | / | ||
| Max G.V.W(kg) | / | Max torque (N.M/rpm) | / | ||
| Seat capacity | 49+1+1 | Tank volume (L) | 1200 L | ||
| Max speed(km/h) | 120 | Emission Standard | Euro 5 | ||
| Seq | Item | Standard | |||
| 1 | Engine | YC 6MK 375 50, 375hp, Euro | |||
| 2 | Fuel tank | 1200L（Aluminum tanker） | |||
|
3 |
Gearbox |
Domestic fast 6DS180T manual 6 speed transmission,gear arrangement same as the picture shown on the right ,with power shifting function, gearbox lever combined with
dashboard |
|||
| 4 | Clutch | SACHS clutch | |||
| 5 | Front axle | front axle ：7.5T | |||
| 6 | Rear axle | rear axle ：13T | |||
|
7 |
Brake system |
Independent dual-circuit service pneumatic brake for front and
rear axle, front disc and rear drum braking system; Energy spring parking brake |
|||
|
8 |
Suspension | Front 2 rear 4 air bags with front and rear stabilizer （firestone
airbag) |
|||
| 9 | Steering | Bosch power steering (Same as Previous ZF8098)
|
|||
| 10 | ABS/EBS | WABCO EBS（included ABS&ASR function） | |||
| 11 | Automatic Slack Adjuster | rear auto slack adjuster | |||
| 12 | Retarder | FAST Hydraulic retarder | |||
| 13 | Centralized lubrication | No | |
|
14 |
Cooling system
|
Radiator 7 lines, advance test for cooling performance
Improved high capacity water cooling and fan system |
|
|
15 |
Tyre | KUHMO 295/80R22.5 Tubeless tire with spare tyre GCC | |
|
16 |
Wheel rim |
Aluminum wheel rim with wheel nut cover and wheel hub
cover |
|
|
17 |
A/C |
NTC Roof mounted A/C 36 000-38000kcal with Bitzer
compressor ,auto digital control panel ，6 condenser fans , 8 evaporator fan, must have service in Saudi from supplier, |
|
| 18 | Heater | No | |
| 19 | Defroster | front windshield water heating defroster
|
|
|
20 |

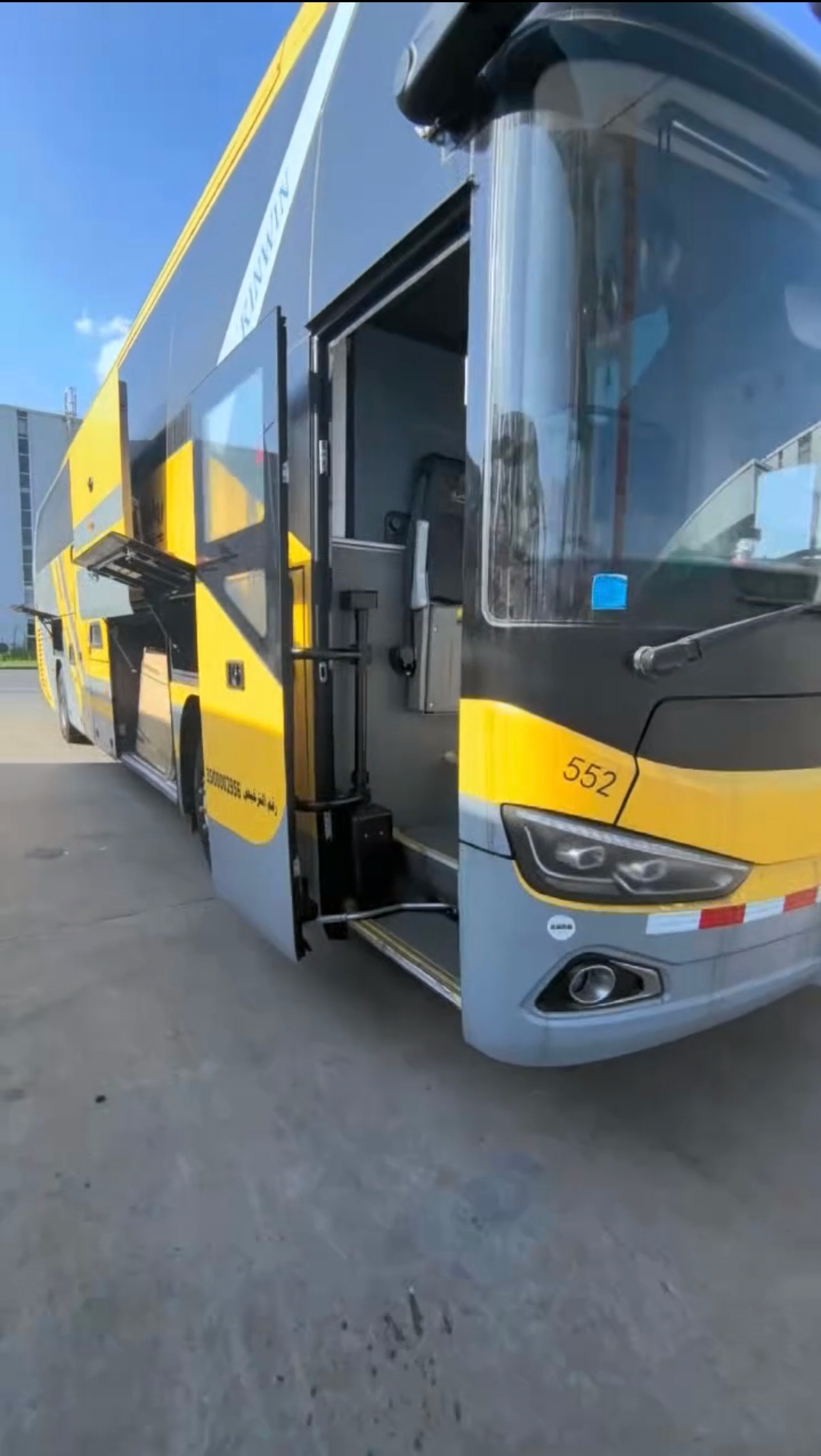

Passenger door/front door | Pneumatic outward-swing door(single door),single door
with remote control |
|
|
21 |
Passenger door/middle door | Pneumatic outward-swing door(single door),movable
step for the middle door |
|
|
22 |
Front/rear windshield | front windshield in one piece(Laminated) ， rear windshield
glass closed |
|
|
23 |
Side window |
fully closed side window ，black outer glass, double glass, inner sliding side window for driver(colorless toughened glass), 3 safety hammer for each side
Fully enclosed viscose glass side windows (insulating glass, black glass outside, white glass inside), built-in driver window (driver’s window is colorless tempered glass, single-layer glass), etc3 safety hammers are set on each side of the side window , the front passenger door is insulating glass, the length of the flow trough above the passenger door should not be too long, it needs to match the width of the passenger door, and the width of the flow trough should not be too wide to be fine and beautiful, and the scraping treatment of the lower mouth of the driver’s window should be fine and beautiful, as in the photo on the right |
|
|
24 |

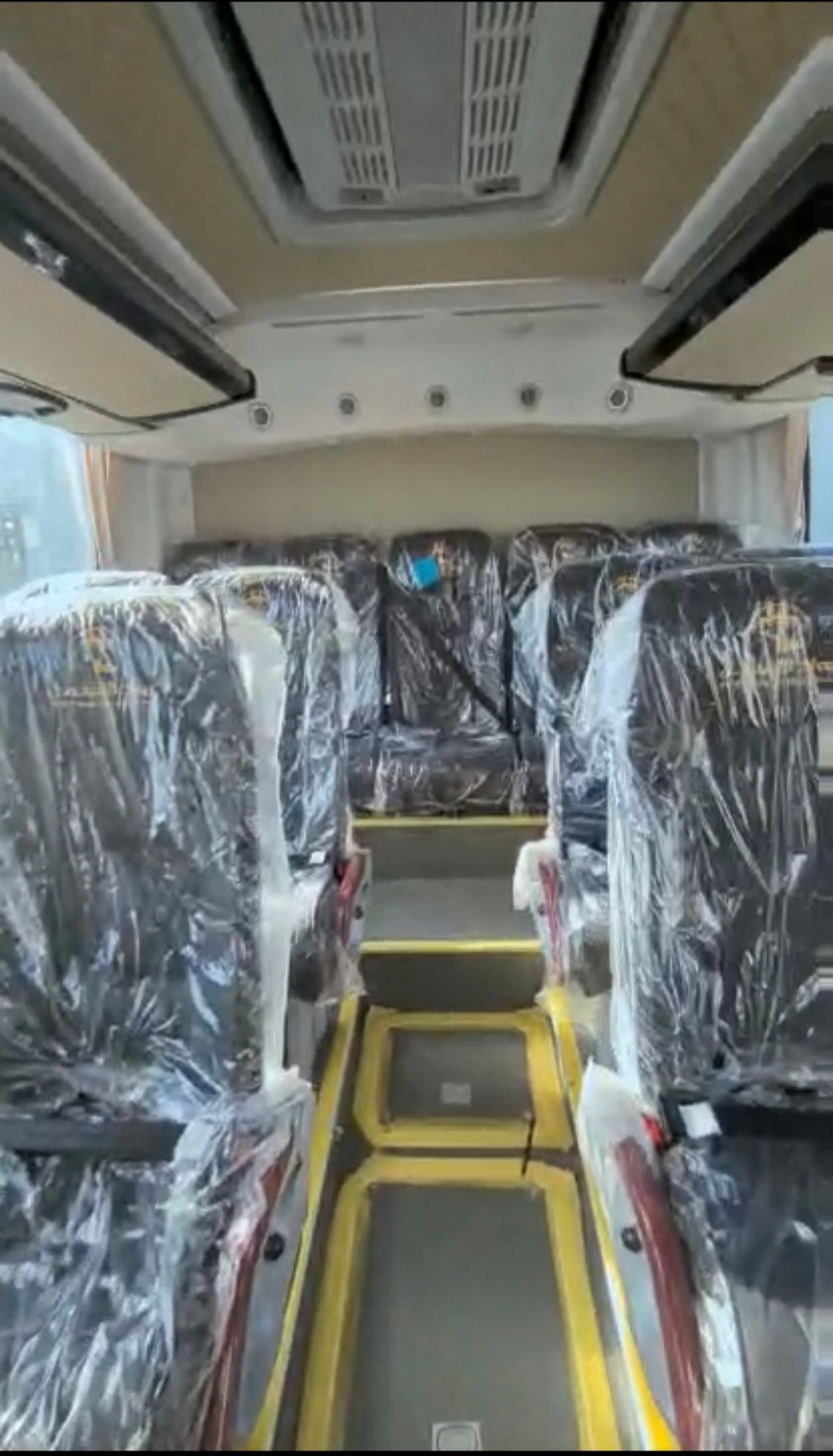

Passenger seat |

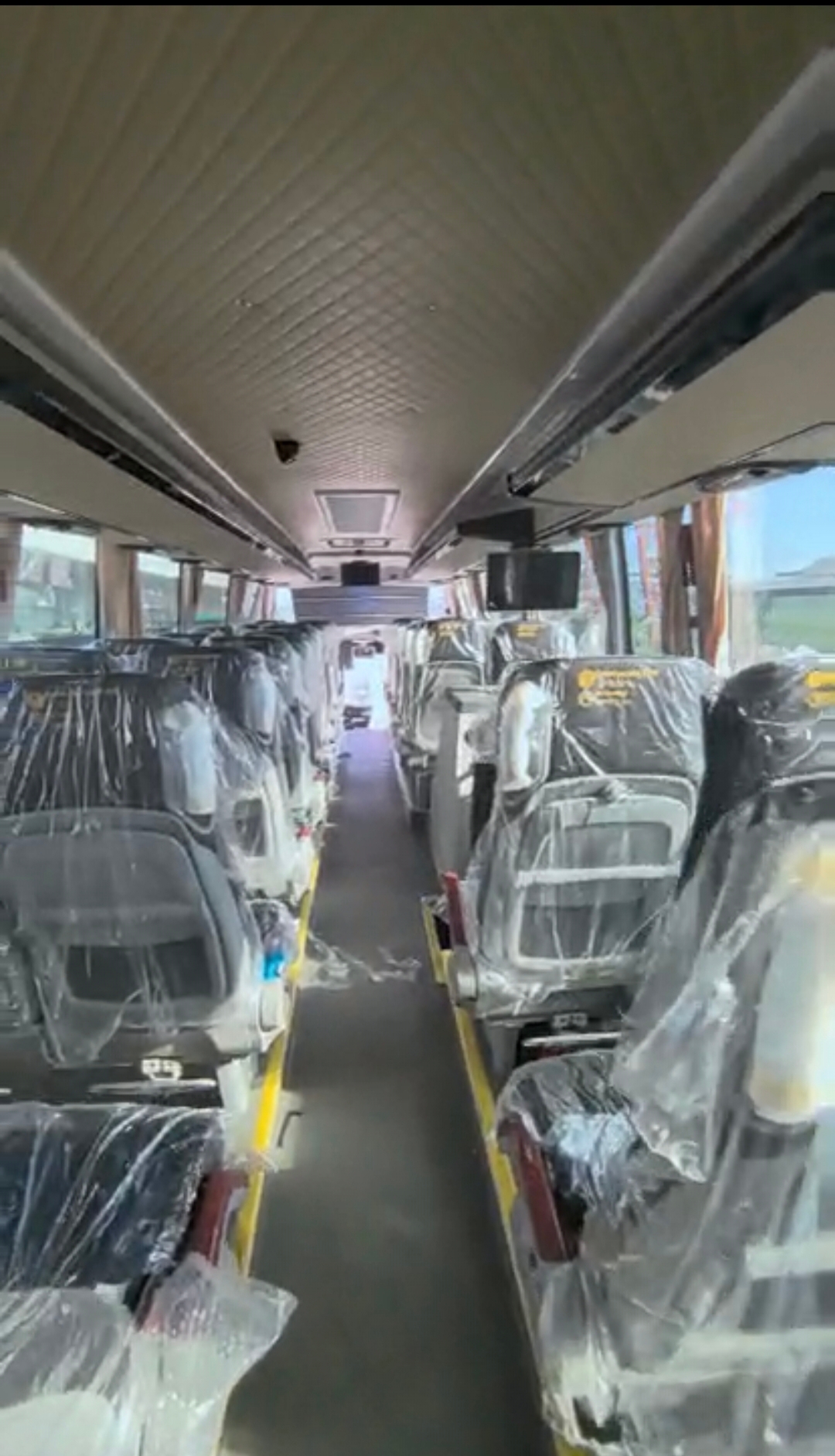

49 seater,2+2 layout, Seat type: LICHI luxurious
seats ,Aluminum alloy peach wooden armrest Front and back adjustable, with transverse; Back soft type handle, one cup holder, a tea cup holder, two points auto retractable seat belt; Aluminum alloy foot-rest, single-port USB （with type-c, the type must be confirmed and approved by customer |
| ) port on the back of each passenger seat . With folding dining table and Magazine-net,
the color matching of seat cover as per separate approved design. Note: USB charging outlet for the first and last row passenger as per the what seat supplier supplies. Head cover of the seats embroidered with customer company name & logo Seat pitch is not less than 800mm, seat width is not less than 400mm Cup holder for front seats which is no seats behind 3 points seat belt for the seats which there is no seats in front
|
|
||
|
25 |
Driver’s seat |
Front and rear adjustable, Air suspended driver’s seat. with three point seat belt, leather covered seat material same as 2020 order, arm rest on the right, seats and cushion can be move front and back
|
|
|
26 |
Guider’s seat |
Same seat material as passenger seat with three points seat
belt, The angle will be adjusted to be more comfortable
|
|
|
27 |
Interior lighting
|
Roof Light , Step Light, engine room light, luggage room light,
Cabin light, full length LED light at roof along the luggage racks(three color options, white, blue, orange ) , star sky roof, LED strip light for aisle and front and middle passenger door steps（pictures for reference on the right)
|
|
28 |
Reading lamp | Reading light for each seat | |
|
29 |
Interior |

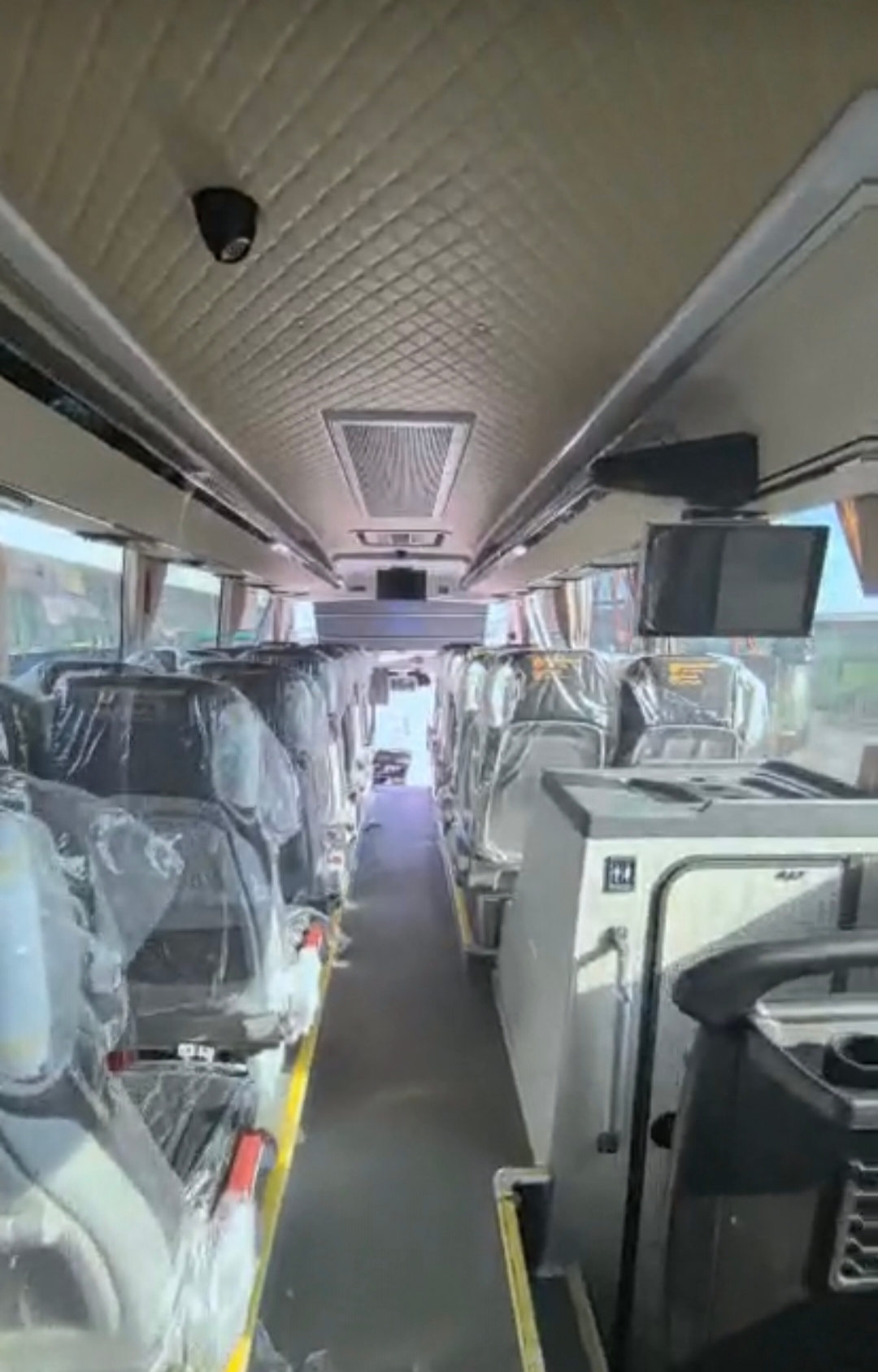

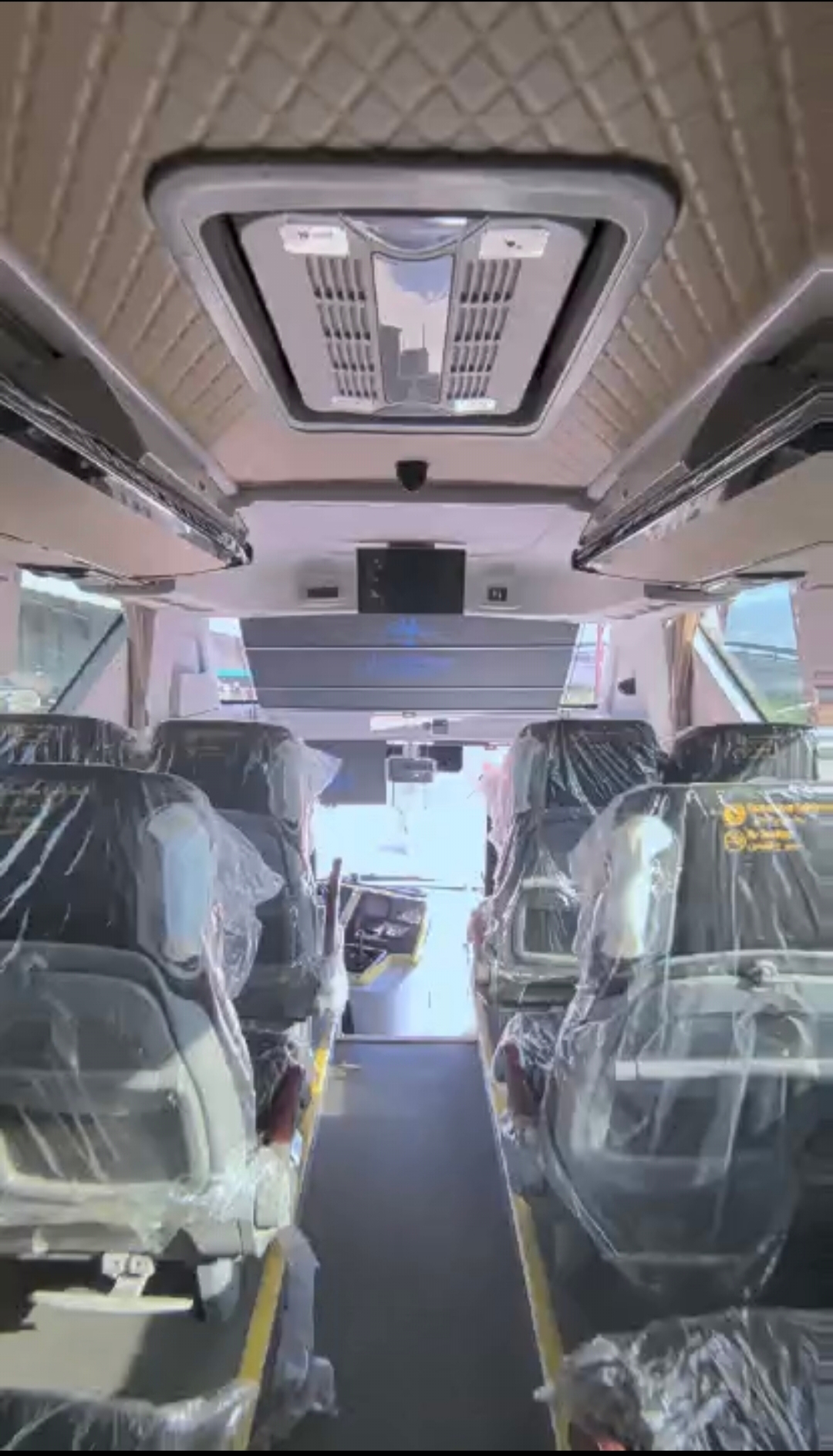

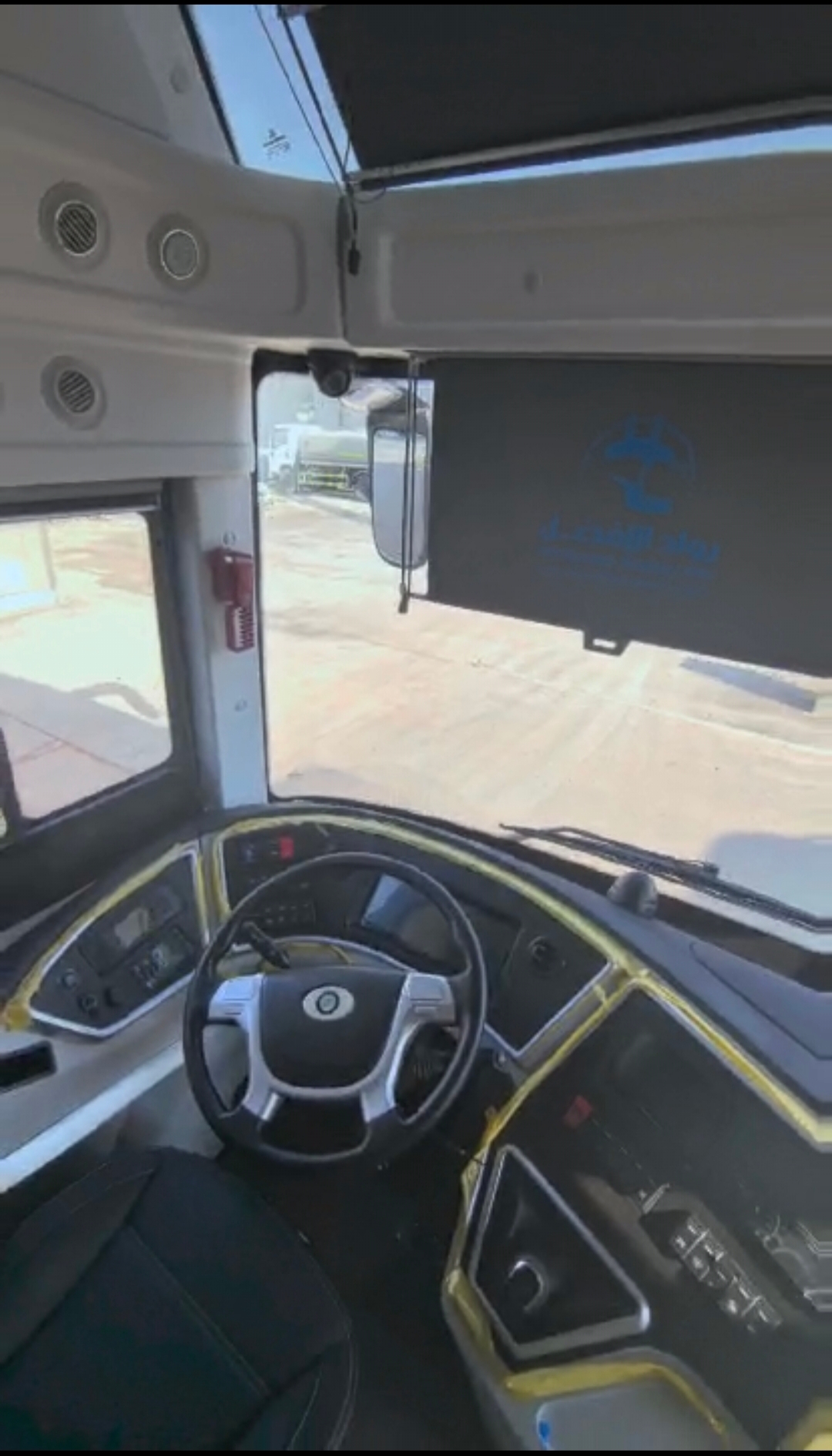

New Design dashboard (with reference to the right picture) Inner roof need the diamond grid decoration the same as the picture. Aluminium-plastic side panel under side window(style as per picture on the right,color to be decided)
|
|
|
30 |
Inner luggage rack |
Luxury open type inner luggagr racks along with seat No. Light (Passport box and first aid box set at front of luggage racks), LED Sign for passenger Number
|
|

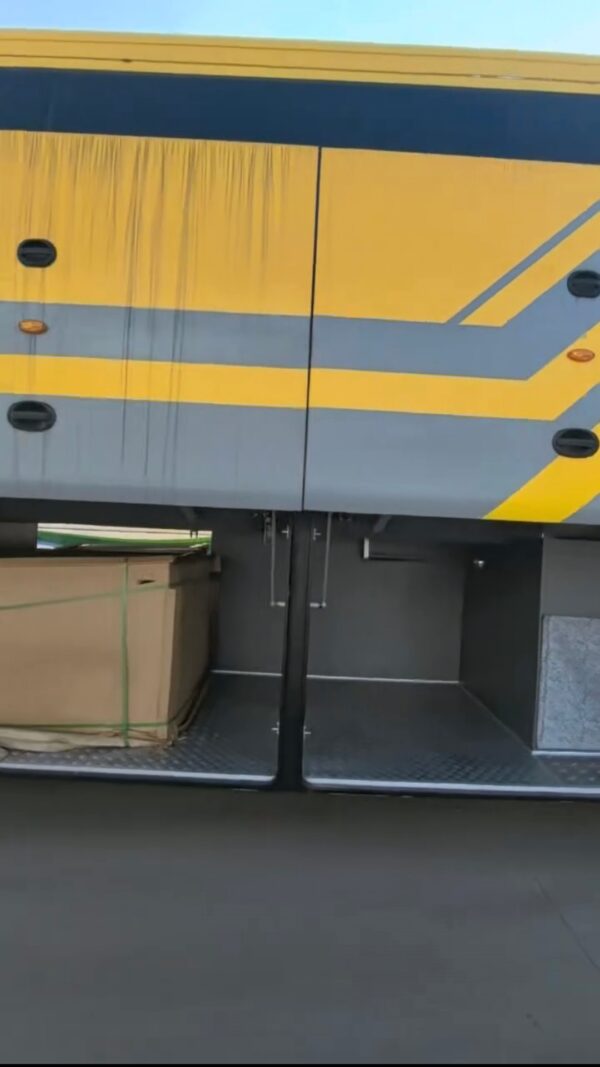

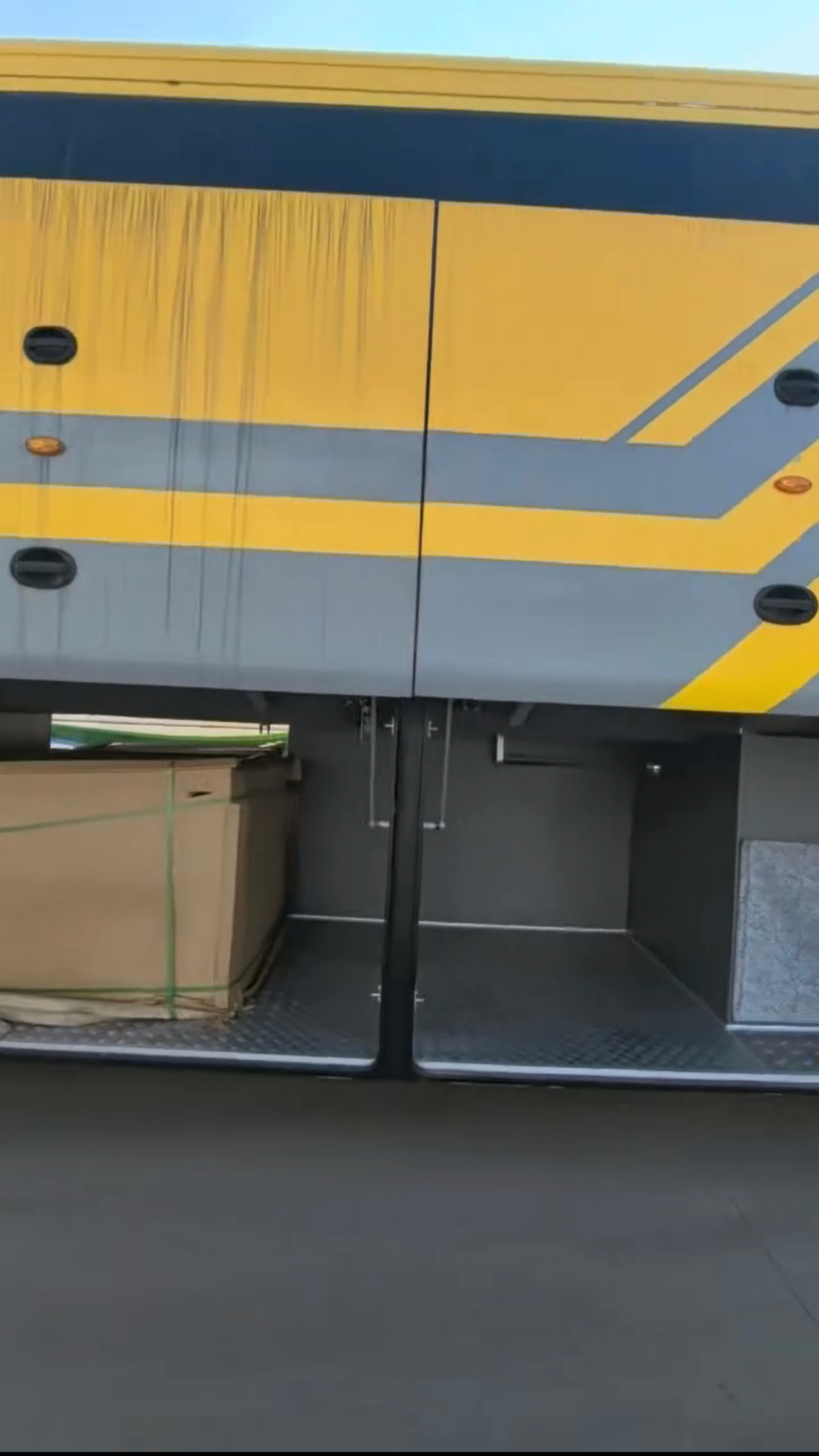

| 31 | Luggage compartment | Side luggage compartment (with auto fire detector)
|
|
|
32 |

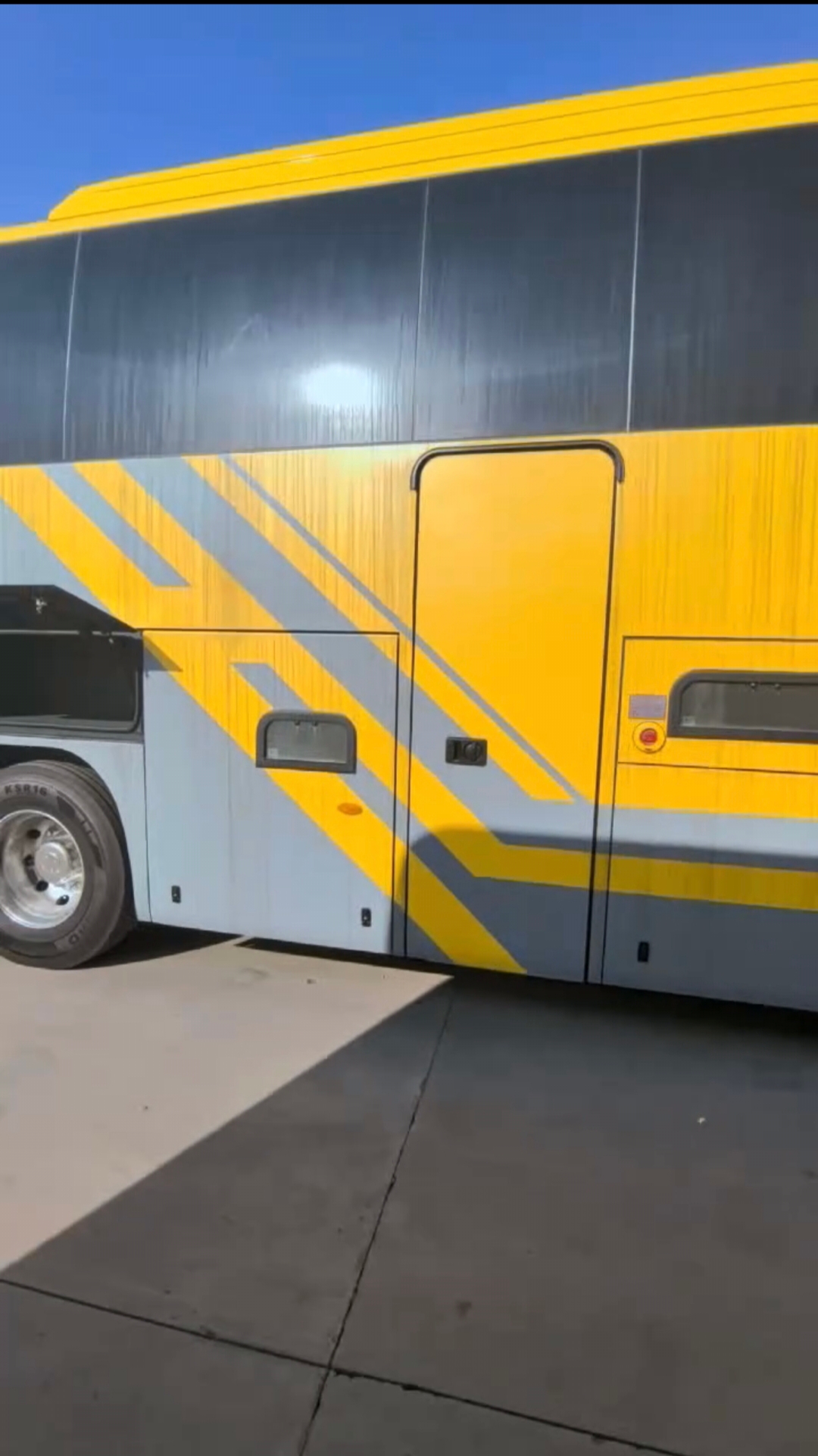

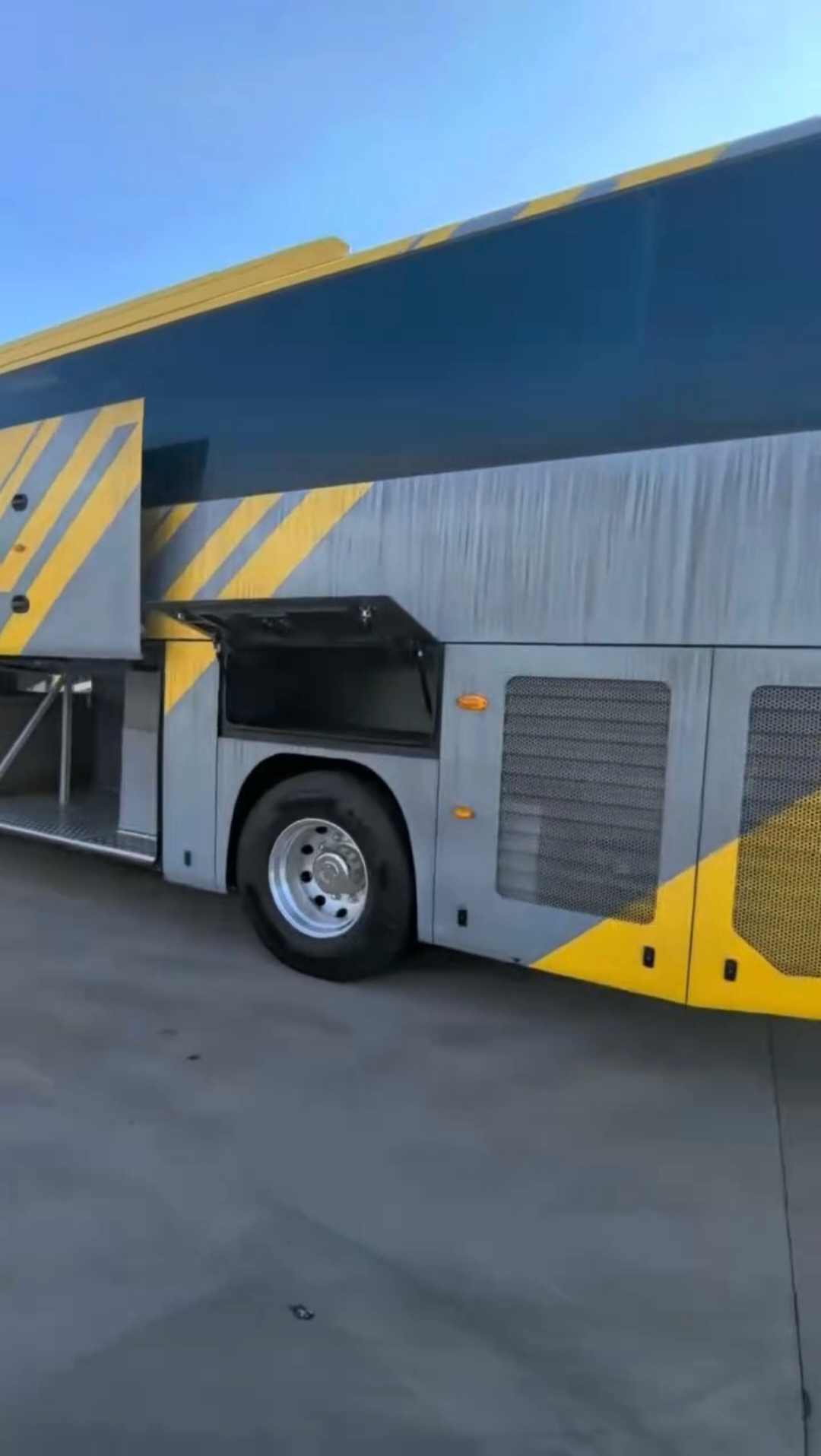

Side luggage compartment door
|
Manual Up-moving side luggage door ,Aluminium floor for
luggage compartment,
|
|
| 33 | Roof luggage rack | No | |
|
34 |
rear view mirror |
Electrical control with auto defrosting function
As per right reference photo
|
|
| 35 | Floor | Local brand floor leather, style pending to interior design
|
。 |
|
36 |
Audio&visual equipment |
One wired microphone(fixing hole on dashboard position shown on the right picture).
one fixed 22 inch LCD at front, one fixed 22 inch LCD above the toilet in front of middle door. All LCD screen are Android screen with USB playing function. LCD screen on the dashboard with Navigation function. 500G DVR video monitoring,5 inner camera(Two camera for driver and front door，1 for front of bus, one full view camera at front , one camera for middle door,) North Magnatic, same as KINLONG ，ZHONGTONG, HIGER BUS in 2023 ，comply with naqaba operation regulation |
|
| 37 | Clock | New style digital clock | |
| 38 | Water dispenser | No | |
|
39 |
Fridge | Yes （on the right front side of the bus), 60-70L
The width of the refrigerator must be as close as possible to the width of the seat, and no guardrails are allowed in front of the seat, as they do not comply with regulations.
|
|
|
40 |

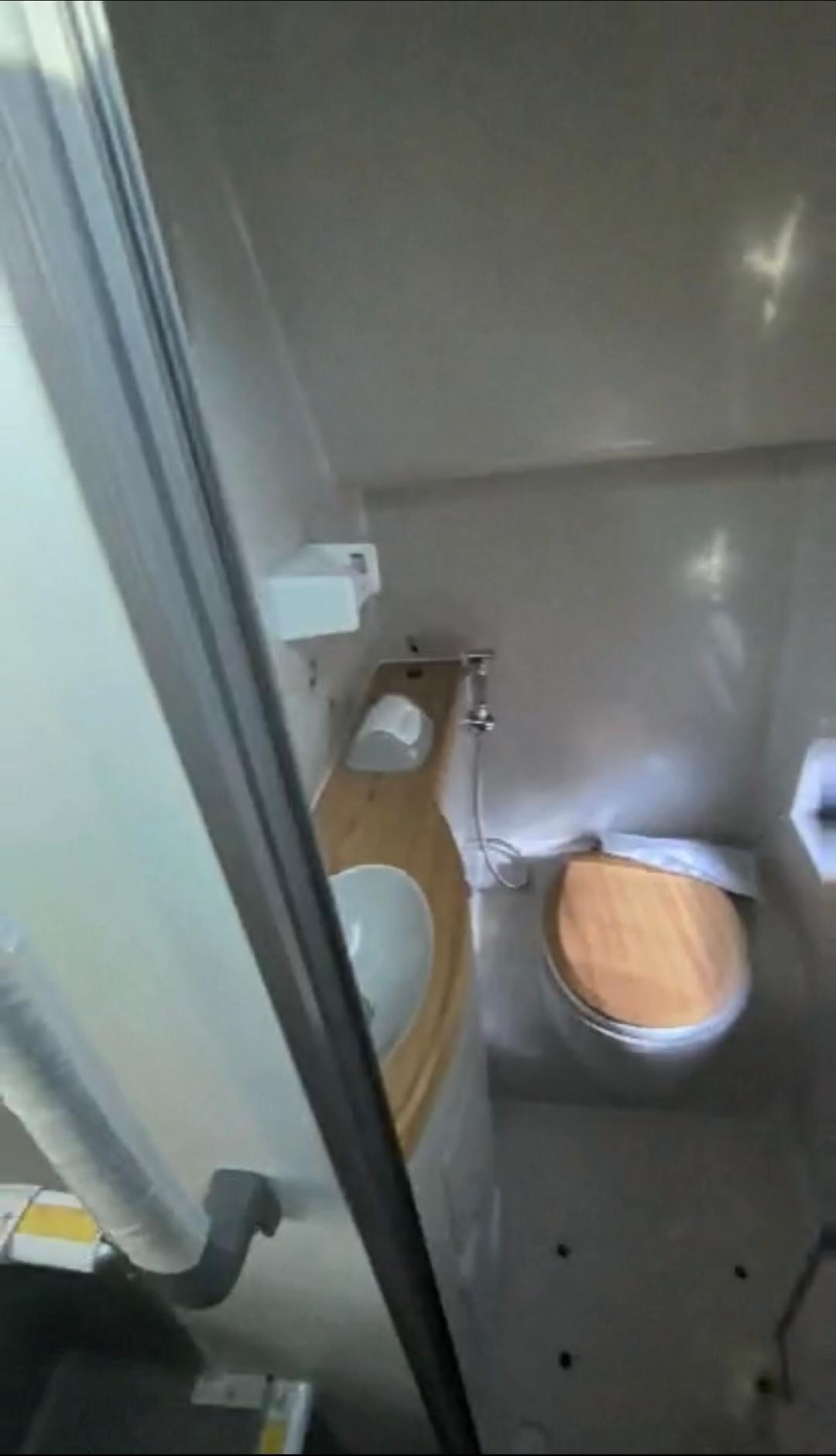

Toilet | Yes in the middle door area, with auto fire detector
Both of 2 tanker change to plastic tanker
|
|
| 41 | Top hatch
|
2 Top hatch with electric fan
|
|
| 42 | Running recorder | English running recorder | |
|
43 |
GPS |
YES, Magnetic North, can be connected with naqaba
requested operation system
|
|
|
44 |
Curtain | Cloth side curtains, the color is determined separately according to the “Interior and Exterior Decoration Plan” | |
|
45 |
Sunshade |
Two sunshade for front windshield lower glass by manual
control, side rolling sunshade for driver’s window, sunshade painted with customer logo Manual sunshade for upper window shield sunshade |
|
| 46 | Guardrails | Standard | |
|
47 |
Reversing Monitor | Colorful reversing monitor screen intergreated with android
screen, with sensor only voice, and buzzer. |
|
|
48 |
Fire Extinguisher | Automatic temperature alarm and three fire extinguisher in
engine compartment |
|
49 |
CAN system |
CAN instrument (ACITA or similar quality and brand)
|
|
| 50 | Paint | Imported metallic painting , pattern as per special require | |
|
51 |
Destination board |
North Magenatic 3 pieces destination board
Position as: Front destination board same position as picture showing on the right. Left & Right destination board position based on factory design Left & Right destination need soft package treatment, the specification and size as per local regulation, connected with local communication agreement in SAUDI
|
|
| 52 | Generator | As per factory design | |
| 53 | Battery | Batteries：free Maintenance type
Maintenance-free battery (pull-out), cylindrical pile head, pull-out battery carrier |
|
| 54 | Sleeping cabin | Yes, with soft decoration and AC | |
|
55 |
Special treatment |
1. Imported AMP electric plug.
2. LED headlight 3. New style A/C roof ventilation grille
|
|
|
56 |
Others |
1. Add Air horn
2. 3 fire extinguishers inside the bus, 8kg 3. One water tank for haji use at rear side of the bus 4. High position back light 5. Front and rear towering hock 6. Wifi equipment inside the bus,5G 7. USB charging outlet binding with passenger seat 8. Lifting jack specs :10T, height loading capacity 25 tons 9. English Vehicle ID. English&Arabic Plates&Marks inside the bus, bus model in nameplate as GSO CERTIFICATE 10. MODEL YEAR AS 2026 11. Achieve the improvement of PREVIOUS BUS QUALITY PROBLEM 12. Front body sign lamp, 5 pcs, 3 in middle as blue color, 2 in side as white color 13. Bus lifting system as mechanical type
|
